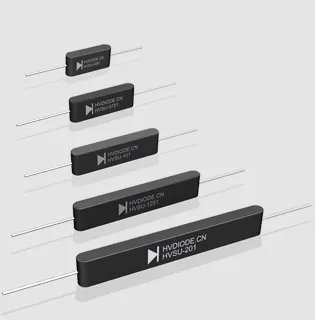

HVSU 系列超快恢复高压二极管(2.5-25KV；1.0A；70nS)
| Type | Vrrm(KV) | If(A) | Vfm(V) | Ifsm(A) | TRR(nS) | Irrm1/Irrm2(uA) | Dimensions | Photo |
| Ta=25℃ Ir=2uA | Ta=25℃ | Max | tp=8.3ms 50℃ | Ta=25℃/100℃ | L×B×H(mm) |  |
||
| HVSU-0251 | 2.5 | 1.0 | 3.3 | 40 | 70 | 1/20 | 29×6.5×12 | |
| HVSU-0501 | 5.0 | 1.0 | 5.5 | 40 | 70 | 1/20 | 29×6.5×12 | |
| HVSU-0751 | 7.5 | 1.0 | 8.8 | 40 | 70 | 1/20 | 42×6.5×12 | |
| HVSU-101 | 10.0 | 1.0 | 11.0 | 40 | 70 | 1/20 | 51×6.5×12 | |
| HVSU-1251 | 12.5 | 1.0 | 13.0 | 40 | 70 | 1/20 | 70×6.5×12 | |
| HVSU-151 | 15.0 | 1.0 | 17.0 | 40 | 70 | 1/20 | 70×6.5×12 | |
| HVSU-201 | 20.0 | 1.0 | 22.0 | 40 | 70 | 1/20 | 89×6.5×12 | |
| HVSU-251 | 25.0 | 1.0 | 28.0 | 40 | 70 | 1/20 | 108×6.5×12 | |
| Junction Temperature(MAX) Temperature -55～+175℃; Storage Temperature -55～+150℃; The models are not displayed individually, please contact customer service for specific requirements |
||||||||
| Other models and parameters are not fully displayed, please contact our customer service: [email protected] | ||||||||
