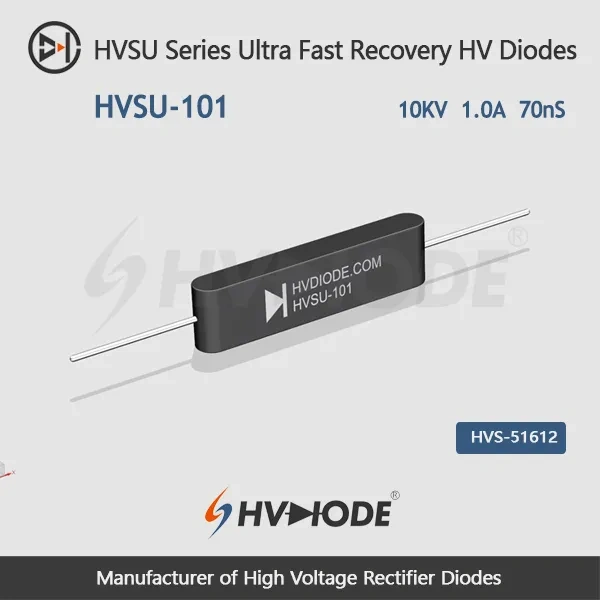

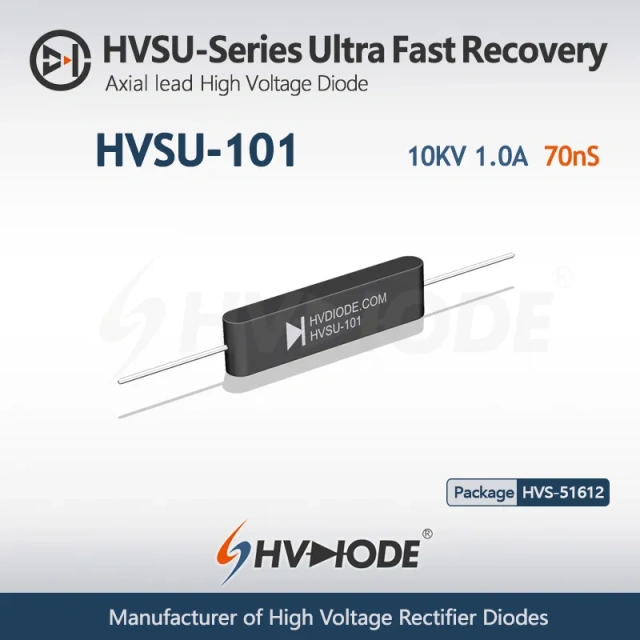

HVSU-101 超快恢复高压二极管 10KV 1A 70nS

No.HVSU-101
产品主要特点:
1、轴向引线连接。
2、高导热环氧复合成型。
3、优良的抗浪涌电流能力。
4、反向恢复时间快,效率高。
5、特殊高温玻璃钝化技术。
  • HVSU-101 超快恢复高压二极管 10KV 1A 70nS
  • HVSU-101 超快恢复高压二极管 10KV 1A 70nS
  • HVSU-101 超快恢复高压二极管 10KV 1A 70nS

产品描述

 HVSU-101 超快恢复高压二极管  Data Sheet
 Parameter Symbol Unit Test Conditions Value
 Repetitive Peak Backward Voltage Vrrm KV Ta=25℃  Ir=1.0μA 10.0
 Peak Working Backward Voltage Vrwm KV Ta=25℃  Ir=1.0μA 10.0
 Average Forward Current If(AV) A 50Hz Half-sine Wave , Resistance load @Tbreak=50℃ 1.0
 Backward Recovery Time Trr nS   70
 Surge Forward Current Ifsm A 0.01S @ Half-Sine wave  50Hz 40
 Operating Ambient Temperature Ta   -55~+175
 Storage Temperature Tstg   -55~+150
 Forward Peak Voltage Vfm V   ≥11.0
 Backward Peak  Current Irrm1 μA @ Ta=25℃ VRM=VRRM 1.0
Irrm2 μA @ Ta=100℃ VRM=VRRM 20.0
 Absolute Maximum Ratings & Electrical Characteristics
