PUF系列 表面贴装超快速恢复高压二极管 (15-30KV；20-300mA；40nS)

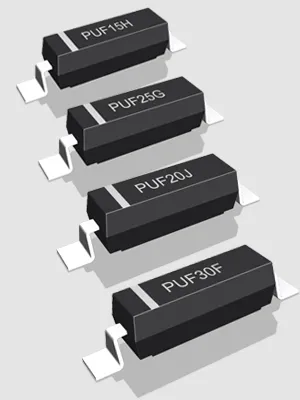

| Type | Vrrm(KV) | If(mA) | Trr(nS) | Ifsm(A) | Vfm(V) | Irrm1/Irrm2(uA) | Photo |
|---|---|---|---|---|---|---|---|
| Condition | Ta=25℃ Ir=2uA | Ta=25℃ | If=0.1A;Irr= -0.05A | tp=8.3ms 50℃ | Max | Ta=25℃/100℃ | |
| PUF15A | 15 | 20 | 40 | 10 | 30.0 | 1/20 |  |
| PUF15H | 15 | 200 | 40 | 10 | 30.0 | 1/20 | |
| PUF20C | 20 | 50 | 40 | 10 | 40.0 | 1/20 | |
| PUF20D | 20 | 60 | 40 | 10 | 40.0 | 1/20 | |
| PUF20E | 20 | 80 | 40 | 10 | 40.0 | 1/20 | |
| PUF20F | 20 | 100 | 40 | 10 | 40.0 | 1/20 | |
| PUF20G | 20 | 150 | 40 | 10 | 40.0 | 1/20 | |
| PUF20H | 20 | 200 | 40 | 10 | 40.0 | 1/20 | |
| PUF20J | 20 | 300 | 40 | 10 | 40.0 | 1/20 | |
| PUF25A | 25 | 20 | 40 | 10 | 50.0 | 1/20 | |
| PUF25C | 25 | 50 | 40 | 10 | 50.0 | 1/20 | |
| PUF25F | 25 | 100 | 40 | 10 | 50.0 | 1/20 | |
| PUF25G | 25 | 150 | 40 | 10 | 50.0 | 1/20 | |
| PUF25H | 25 | 200 | 40 | 10 | 50.0 | 1/20 | |
| PUF25I | 25 | 250 | 40 | 10 | 50.0 | 1/20 | |
| PUF25J | 25 | 300 | 40 | 10 | 50.0 | 1/20 | |
| PUF30F | 30 | 100 | 40 | 10 | 60.0 | 1/20 | |
| PUF30G | 30 | 150 | 40 | 10 | 60.0 | 1/20 | |
| PUF30H | 30 | 200 | 40 | 10 | 60.0 | 1/20 | |
| PUF30I | 30 | 250 | 40 | 10 | 60.0 | 1/20 | |
| PUF30J | 30 | 300 | 40 | 10 | 60.0 | 1/20 | |
| 型号未完全显示，参数定制，请联系我们的客服: sales@hvdiode.com | |||||||
