轴向引线碳化硅高压二极管 (9-22KV；0.4-1A) 常用型号
| Type | Vrrm(KV) | If(A) | Vfm(V) | Ifsm(A) | TRR(nS) | Irrm1/Irrm2(uA) | Package | Photo |
|---|---|---|---|---|---|---|---|---|
| Condition | Ta=25℃ Ir=2uA | Ta=25℃ | Max | tp=8.3ms 50℃ | Ta=25℃/175℃ | |||

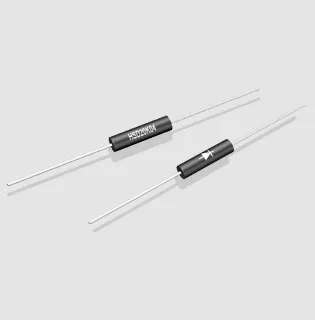

| HSD9K1 | 9 | 1 | 11.0 | 10 | 2 | 2/5 | HVD312 |  |
| HSD12K1 | 12 | 1 | 14.5 | 10 | 2 | 2/5 | HVD312 | |
| HSD15K05 | 15 | 0.5 | 18.0 | 10 | 2 | 2/5 | HVD312 | |
| HSD15K1 | 15 | 1 | 18.0 | 10 | 2 | 2/5 | HVD312 | |
| HSD18K05 (ASIC18-05） |
18 | 0.5 | 20.5 | 10 | 2 | 2/5 | HVD312 | |
| HSD20K04 | 20 | 0.4 | 21.5 | 10 | 2 | 2/5 | HVD312 | |
| HSD22K04 | 22 | 0.4 | 21.5 | 10 | 2 | 2/5 | HVD312 | |
| 结温（最大）温度：-55～+175℃；存储温度：-55～+150℃； 如有特定需求，请联系客服 : sales@hvdiode.com |
||||||||
