PUD系列 表面贴装超快速恢复高压二极管 (3-8KV；100-600mA；40nS)

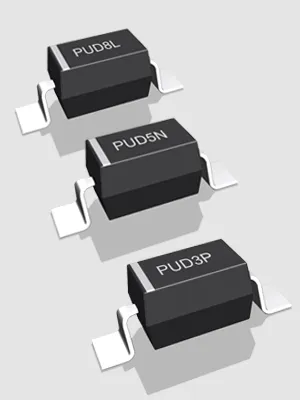

| Type | Vrrm(KV) | If(mA) | Trr(nS) | Ifsm(A) | Vfm(V) | Irrm1/Irrm2(uA) | Photo |
|---|---|---|---|---|---|---|---|
| Condition | Ta=25℃ Ir=2uA | Ta=25℃ | tp=8.3ms 50℃ | Max | Ta=25℃/100℃ | ||
| PUD3F | 3 | 100 | 40 | 10 | 6.0 | 1/20 |  |
| PUD3G | 3 | 150 | 40 | 10 | 6.0 | 1/20 | |
| PUD3H | 3 | 200 | 40 | 10 | 6.0 | 1/20 | |
| PUD3J | 3 | 300 | 40 | 10 | 6.0 | 1/20 | |
| PUD3L | 3 | 400 | 40 | 10 | 6.0 | 1/20 | |
| PUD3N | 3 | 500 | 40 | 10 | 6.0 | 1/20 | |
| PUD3P | 3 | 600 | 40 | 10 | 6.0 | 1/20 | |
| PUD5F | 5 | 100 | 40 | 10 | 10.0 | 1/20 | |
| PUD5H | 5 | 200 | 40 | 10 | 10.0 | 1/20 | |
| PUD5L | 5 | 300 | 40 | 10 | 10.0 | 1/20 | |
| PUD5N | 5 | 500 | 40 | 10 | 10.0 | 1/20 | |
| PUD8F | 8 | 100 | 40 | 10 | 16.0 | 1/20 | |
| PUD8H | 8 | 200 | 40 | 10 | 16.0 | 1/20 | |
| PUD8L | 8 | 300 | 40 | 10 | 16.0 | 1/20 | |
| PUD8N | 8 | 500 | 40 | 10 | 16.0 | 1/20 | |
| Parameter customization, please contact our customer service: sales@hvdiode.com | |||||||
