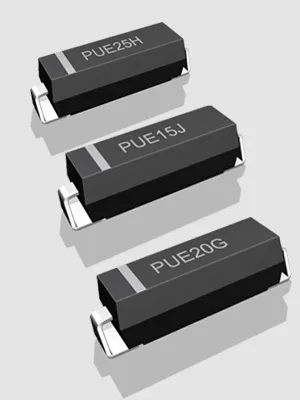

PUE系列表面贴装超高速恢复高压二极管 (15-25KV；20-300mA；40nS)
| Type | Vrrm(KV) | If(mA) | Trr(nS) | Ifsm(A) | Vfm(V) | Irrm1/Irrm2(uA) | Photo |
|---|---|---|---|---|---|---|---|
| Condition | Ta=25℃ Ir=2uA | Ta=25℃ | If=0.1A;Irr= -0.05A | tp=8.3ms 50℃ | Max | Ta=25℃/100℃ | |
| PUE15A | 15 | 20 | 40 | 10 | 30.0 | 1/20 |  |
| PUE15H | 15 | 200 | 40 | 10 | 30.0 | 1/20 | |
| PUE20C | 20 | 50 | 40 | 10 | 40.0 | 1/20 | |
| PUE20D | 20 | 60 | 40 | 10 | 40.0 | 1/20 | |
| PUE20E | 20 | 80 | 40 | 10 | 40.0 | 1/20 | |
| PUE20F | 20 | 100 | 40 | 10 | 40.0 | 1/20 | |
| PUE20G | 20 | 150 | 40 | 10 | 40.0 | 1/20 | |
| PUE20H | 20 | 200 | 40 | 10 | 40.0 | 1/20 | |
| PUE20J | 20 | 300 | 40 | 10 | 40.0 | 1/20 | |
| PUE25A | 25 | 20 | 40 | 10 | 50.0 | 1/20 | |
| PUE25C | 25 | 50 | 40 | 10 | 50.0 | 1/20 | |
| PUE25F | 25 | 100 | 40 | 10 | 50.0 | 1/20 | |
| PUE25G | 25 | 150 | 40 | 10 | 50.0 | 1/20 | |
| PUE25H | 25 | 200 | 40 | 10 | 50.0 | 1/20 | |
| PUE25I | 25 | 250 | 40 | 10 | 50.0 | 1/20 | |
| PUE25J | 25 | 300 | 40 | 10 | 50.0 | 1/20 | |
| Parameter customization, please contact our customer service: sales@hvdiode.com | |||||||
