HVRW系列轴向引线快恢复玻璃钝化高压二极管 (1-15KV；0.8-10A；150nS)

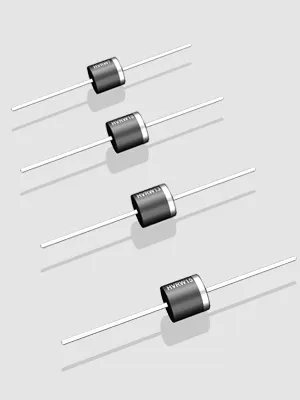

| Type | Vrrm(KV) | If(mA) | Vfm(V) | Ifsm(A) | Trr(nS) | Irrm1/Irrm2(uA) | Dimensions | Photo |
|---|---|---|---|---|---|---|---|---|
| Condition | Ta=25℃ Ir=2uA | Ta=25℃ | Max | tp=8.3ms 50℃ | Ta=25℃/100℃ | Φ1*L(mm) | ||
| HVRW1 | 1.0 | 10.0 | 2.0 | 200 | 150 | 2/20 | 9×9 |  |
| HVRW2 | 2.0 | 5.0 | 3.0 | 100 | 150 | 2/20 | 9×9 | |
| HVRW3 | 3.0 | 3.0 | 4.5 | 60 | 150 | 2/20 | 9×9 | |
| HVRW4 | 4.0 | 3.0 | 5.0 | 60 | 150 | 2/20 | 9×9 | |
| HVRW5 | 5.0 | 2.0 | 7.5 | 60 | 150 | 2/20 | 9×9 | |
| HVRW6 | 6.0 | 2.0 | 7.5 | 40 | 150 | 2/20 | 9×9 | |
| HVRW7 | 7.0 | 1.5 | 10.0 | 40 | 150 | 2/20 | 9×9 | |
| HVRW8 | 8.0 | 1.5 | 11.0 | 40 | 150 | 2/20 | 9×9 | |
| HVRW9 | 9.0 | 1.5 | 12.0 | 20 | 150 | 2/20 | 9×9 | |
| HVRW10 | 10.0 | 1.0 | 15.0 | 20 | 150 | 2/20 | 9×9 | |
| HVRW11 | 11.0 | 1.0 | 15.0 | 20 | 150 | 2/20 | 9×9 | |
| HVRW12 | 12.0 | 1.0 | 16.0 | 20 | 150 | 2/20 | 9×9 | |
| HVRW13 | 13.0 | 0.8 | 19.0 | 20 | 150 | 2/20 | 9×9 | |
| HVRW14 | 14.0 | 0.8 | 19.0 | 20 | 150 | 2/20 | 9×9 | |
| HVRW15 | 15.0 | 0.8 | 20.0 | 20 | 150 | 2/20 | 9×9 | |
| 参数定制，请联系我们的客服: sales@hvdiode.com | ||||||||
