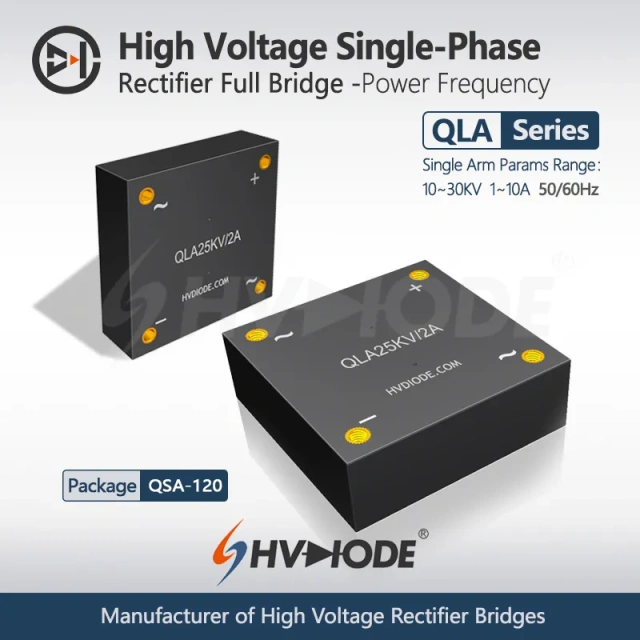

QLA-Series High Voltage Rectifier Full-phase Bridges

1. The specially designed positioning hole structure facilitates installation.
2. High temperature resistant chips ensure reliable operation to the greatest extent possible.
  • QLA-Series High Voltage Rectifier Full-phase Bridges

产品描述

 HV4024 High Voltage Rectifier Half-phase Bridges(Single arm)  Data Sheet
 Parameter Symbol Unit Test Conditions Value
 Repetitive Peak Backward Voltage Vrrm KV Ta=25℃  Ir=2.0μA 24.0
 Peak Working Backward Voltage Vrwm KV Ta=25℃  Ir=2.0μA 24.0
 Average Forward Current If(AV) A 50Hz Half-sine Wave , Resistance load @Tbreak=50℃ 4.0
 Backward Recovery Time Trr nS   --
 Surge Forward Current Ifsm A 0.01S @ Half-Sine wave  50Hz 160
 Operating Ambient Temperature Ta   -55~+175
 Storage Temperature Tstg   -55~+150
 Forward Peak Voltage Vfm V   ≥29.0
 Backward Peak  Current Irrm1 μA @ Ta=25℃ VRM=VRRM 2.0
Irrm2 μA @ Ta=100℃ VRM=VRRM 20.0
 Absolute Maximum Ratings & Electrical Characteristics
