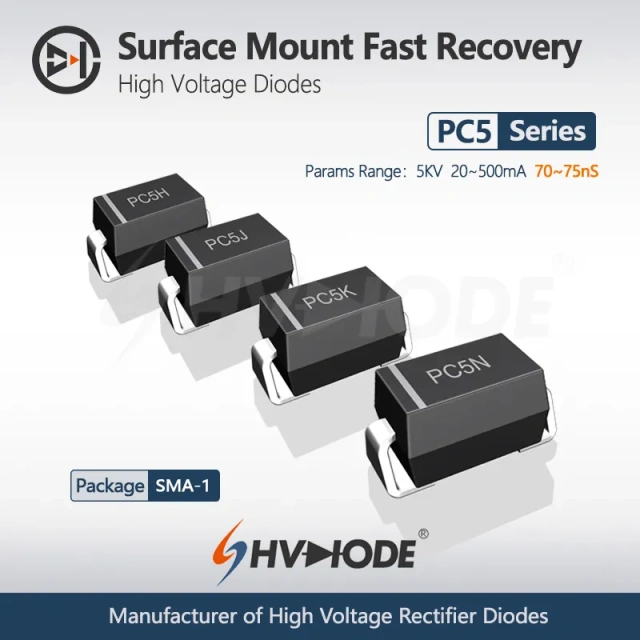

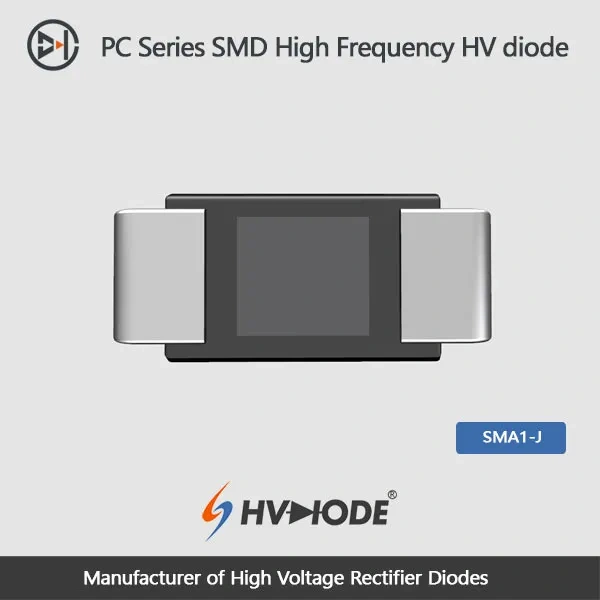

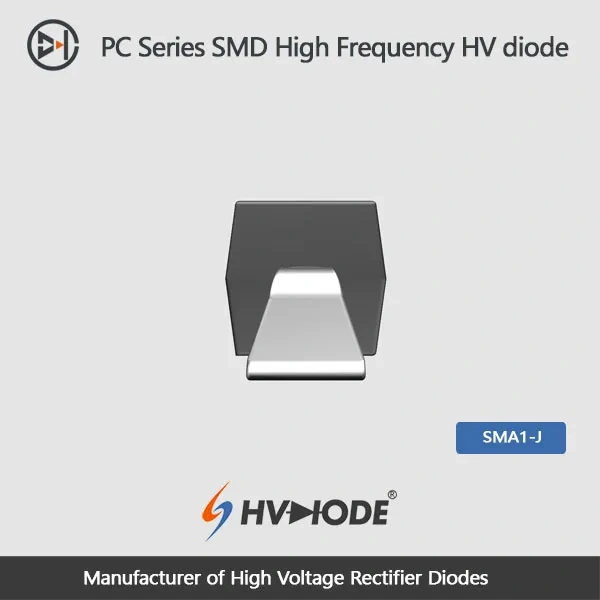

PC5 Series Surface Mount HV Diodes

Parameter Optional Range:(5KV; 20~500mA; 70~75nS)
Vr 反向电压:
5KV
Trr 反向恢复时间:
70~75nS
If 正向电流:
20mA-PC5A
30mA-PC5B
50mA-PC5C
60mA-PC5D
80mA-PC5E
100mA-PC5F
150mA-PC5G
200mA-PC5H
250mA-PC5I
300mA-PC5J
350mA-PC5K
400mA-PC5L
450mA-PC5M
500mA-PC5N
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • PC5 Series Surface Mount HV Diodes
  • 产品描述

  • SMD HVdiode

  • hvd-203封装

  • 高压二极管两侧绝缘问题

产品主要特点:

1、表面贴装连接。
2、高导热环氧复合材料成型。
3、快速恢复时间,效率高。
4、J 型引线(内弯)形状。
5、超小尺寸封装

产品主要参数:
(5KV; 20~500mA; 70~75nS)
Type Vrrm(KV) Io(mA) Trr(nS) Ifsm(A) Vfm(V) Irrm1/Irrm2(uA)
PC5A 5 20 70 10 4.1 1/20
PC5B 5 30 70 10 4.2 1/20

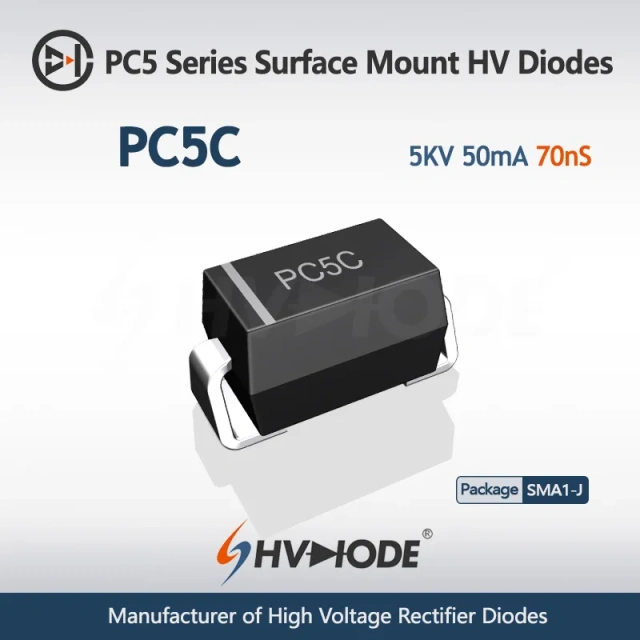

PC5C 5 50 70 10 4.3 1/20
PC5D 5 60 70 10 4.3 1/20
PC5E 5 80 70 10 4.4 1/20
PC5F 5 100 70 10 4.5 1/20

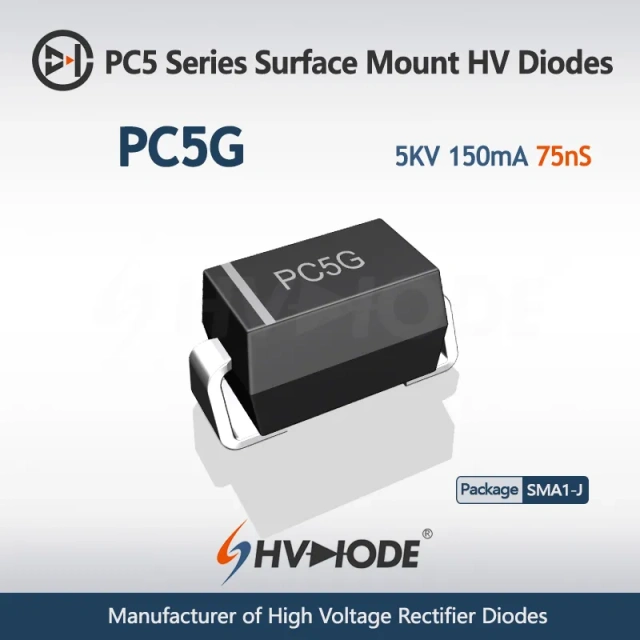

PC5G 5 150 75 10 4.6 1/20

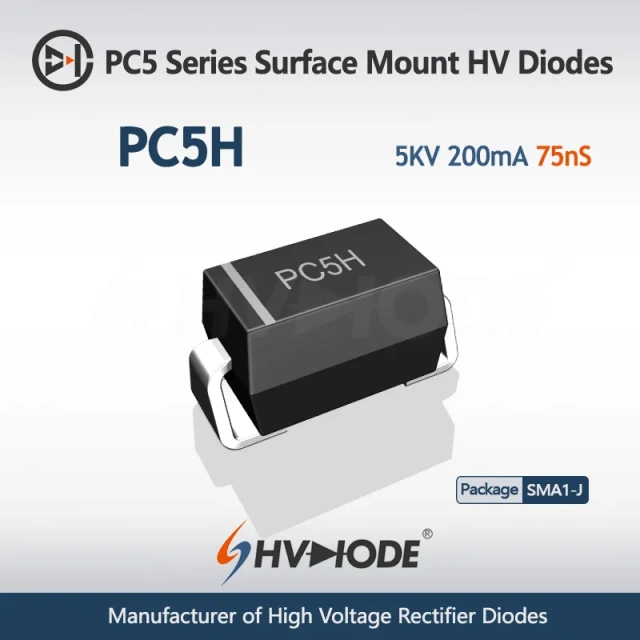

PC5H 5 200 75 10 4.7 1/20

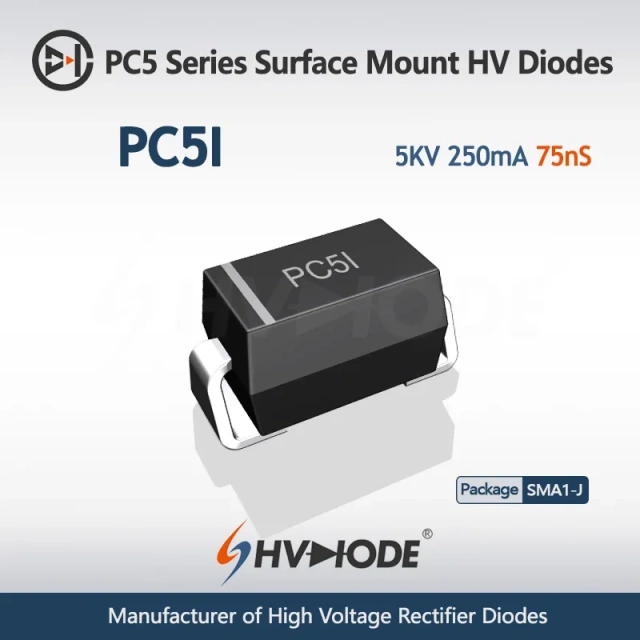

PC5I 5 250 75 10 4.7 1/20

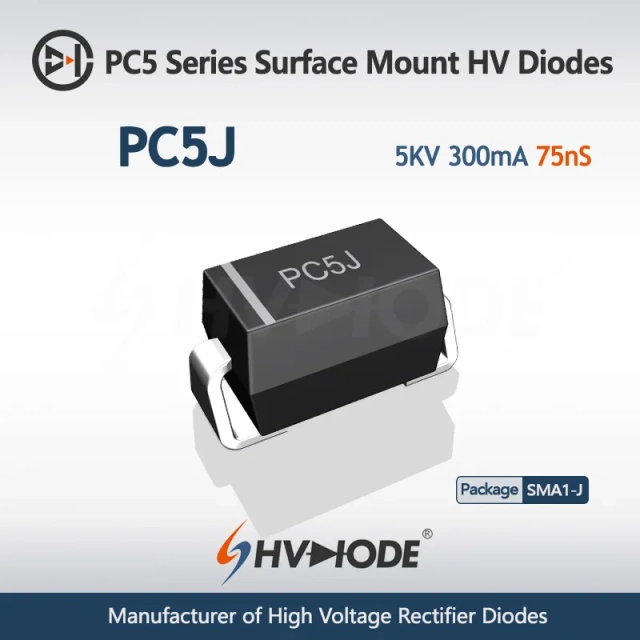

PC5J 5 300 75 10 5.0 1/20
PC5K 5 350 75 10 5.1 1/20
PC5L 5 400 75 10 5.3 1/20
PC5M 5 450 75 10 5.7 1/20
PC5N 5 500 75 10 6.2 1/20
如有其他参数要求,请联系我们客服。 [email protected]

公司简介:

2008年,鞍山术立电子有限公司以HVDIODE的品牌开始了它的征程,其明确的使命是:彻底改变半导体高压整流元件的世界。

植根于先进的技术和创新,我们的公司从一个富有远见的想法成长为高压应用技术的全球领导者。我们成功的核心是对研发的承诺,与世界各地的大学、研究机构和企业建立长期的合作关系。


我们的故事不仅仅是关于制造,而是关于创造推动进步的解决方案。

我们秉承以客户为中心的服务、诚信和效率的价值观,我们很自豪能成为一家通过ISO9001认证的公司,致力于质量和环境责任。

HVDIODE不仅仅是一家制造商;我们是引领者,塑造高压技术的未来。






FAQ

Who Are We?
We are HVDIODE, a specialist in manufacturing semiconductor high-voltage rectifier components since 2008, known for our advanced technology and dedication to innovation.


How Can We Guarantee Quality?
Quality is assured through our ISO9001 certification and adherence to strict manufacturing standards, ensuring top-notch products and consistent performance.


What Can You Buy from Us?
Our products include a range of high-quality semiconductor high-voltage rectifier components, designed for various high-voltage applications.


Why Should You Buy from Us, Not from Other Suppliers?
Our unique combination of advanced technology, commitment to R&D, long-term industry partnerships, and customer-focused service sets us apart in the market.


What Services Can We Provide?
We offer comprehensive services including product customization, technical support, and dedicated customer service, ensuring a seamless experience for our clients.



Explore now for innovative electronic solutions!


高压二极管的选择和使用环境关系密切

1.绝缘油中使用。(推荐)
2.绝缘气体中使用。(推荐)
3.二次封装使用。(对元器件的散热和其他参数性能要求高)
4.裸露空气中使用或加风冷。(如果高压二极管尺寸小,会容易放电,另外散热性能一般。)

裸露空气中使用的高压二极管,建议安装时,两端的电极,需要做绝缘保护处理。


常用表面附着绝缘胶的处理方式:

绝缘胶材质的特性:

1、Silicone材质固化后通常呈现透明且具弹性橡胶态,比较能有效防震,也可以承受较大高低温变化所产生的剧烈应力变化(-40°C~200°C)。

2、Acrylic材质固化后通常呈现透明而且坚硬的涂层,具有低吸湿性和较快的固化时间,耐磨及绝缘性佳。

3、Urethane材质固化后通常呈现透明且硬的涂层,具有优越的耐磨性和良好的防潮能力,在低温环境下的性能尤其稳定,但较不耐高温。

4、Epoxy为基质的涂层材料很坚固,通常为不透明状,具有良好的防潮及防湿能力,其防化学腐蚀和耐磨性的表现也非常好,另外Epoxy也具有良好的介电特性(dielectric properties)。

这里可以根据工程师的不同使用情况来选择合适材质的绝缘胶。
