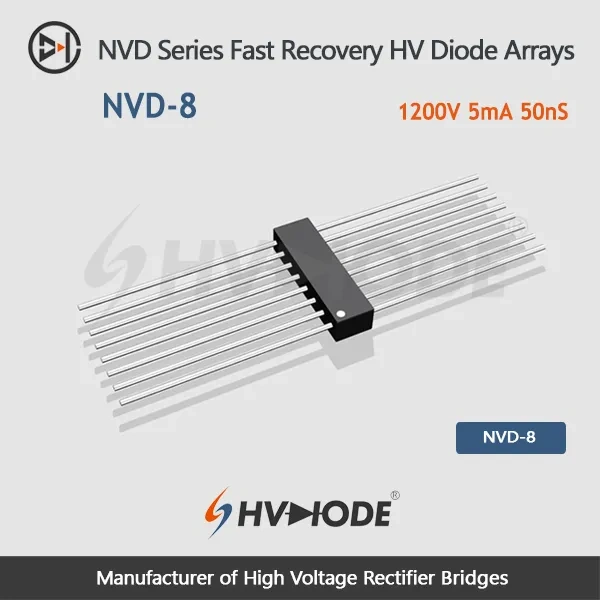

NVD-8 快恢复高压二极管阵列 1.2KV 5mA 50nS

No.NVD-8
产品主要特点:
1、轴向引线连接;
2、高导热环氧复合成型;
3、专用钝化胶芯片保护;
4、反向恢复时间快,效率高;
5、反向漏电流在纳安级;
6、超小尺寸包装。
  • NVD-8 快恢复高压二极管阵列 1.2KV 5mA 50nS
  • NVD-8 快恢复高压二极管阵列 1.2KV 5mA 50nS
  • NVD-8 快恢复高压二极管阵列 1.2KV 5mA 50nS

产品描述

 NVD-8  Fast Recovery High Voltage Diode Arrays Data Sheet
 Parameter Symbol Unit Test Conditions Value
 Repetitive Peak Backward Voltage Vrrm KV Ta=25℃  Ir=1.0nA 1.2
 Average Forward Current If2(AV) mA Ta=25℃  In air 5
 Average Forward Current If2(AV) mA Ta=60℃  In oil 5
 Backward Recovery Time Trr nS   50
 Surge Forward Current Ifsm A 0.01S @ Half-Sine wave  50Hz 0.5
 Junction Temperature(MAX) Ta   -55~+125
 Storage Temperature(MAX) Tstg   -55~+125
 Forward Peak Voltage Vfm V   ≥4.0
 Backward Peak  Current Irrm1 nA @ Ta=25℃ VRM=VRRM 1.0
Irrm2 nA @ Ta=60℃ VRM=VRRM 5.0
 Absolute Maximum Ratings & Electrical Characteristics
