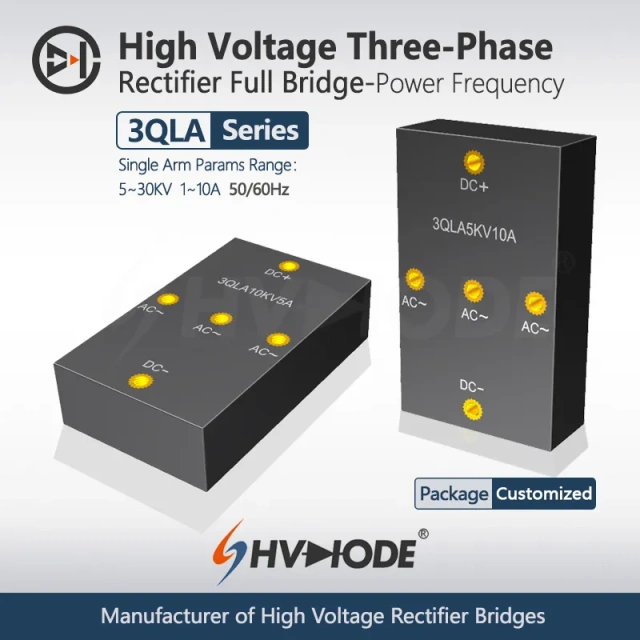

3QLA系列高压三相整流器工频全桥(5-30KV；1-10A；50/60Hz)
| Type | Vrrm(KV) | If(mA) | Vfm(V) | Ifsm(A) | TRR(nS) | Irrm1/Irrm2(uA) | Photo |
|---|---|---|---|---|---|---|---|
| Condition | Ta=25℃ Ir=2uA | Ta=25℃ | Max | tp=8.3ms 50℃ | Ta=25℃/100℃ | ||
| 3QLA5K2 | 5 | 2 | 6.0 | 50 | - - | 2/20 |  |
| 3QLA5K5 | 5 | 5 | 6.0 | 100 | - - | 2/20 | |
| 3QLA5K10 | 5 | 10 | 6.0 | 200 | - - | 2/20 | |
| 3QLA10K2 | 10 | 2 | 12.0 | 50 | - - | 2/20 | |
| 3QLA10K5 | 10 | 5 | 12.0 | 100 | - - | 2/20 | |
| 3QLA10K8 | 10 | 8 | 12.0 | 160 | - - | 2/20 | |
| 3QLA15K2 | 15 | 2 | 18.0 | 50 | - - | 2/20 | |
| 3QLA15K5 | 15 | 5 | 18.0 | 100 | - - | 2/20 | |
| 3QLA20K2 | 20 | 2 | 24.0 | 50 | - - | 2/20 | |
| 3QLA20K3 | 20 | 3 | 24.0 | 75 | - - | 2/20 | |
| 3QLA25K1 | 25 | 1 | 30.0 | 30 | - - | 2/20 | |
| 3QLA25K2 | 25 | 2 | 30.0 | 50 | - - | 2/20 | |
| 3QLA25K3 | 25 | 3 | 30.0 | 75 | - - | 2/20 | |
| 3QLA30K1 | 30 | 1 | 36.0 | 30 | - - | 2/20 | |
| 3QLA30K2 | 30 | 2 | 36.0 | 50 | - - | 2/20 | |
| The above data is for single arm parameters | |||||||
| Parameter customization, please contact our customer service: sales@hvdiode.com | |||||||
