产品描述

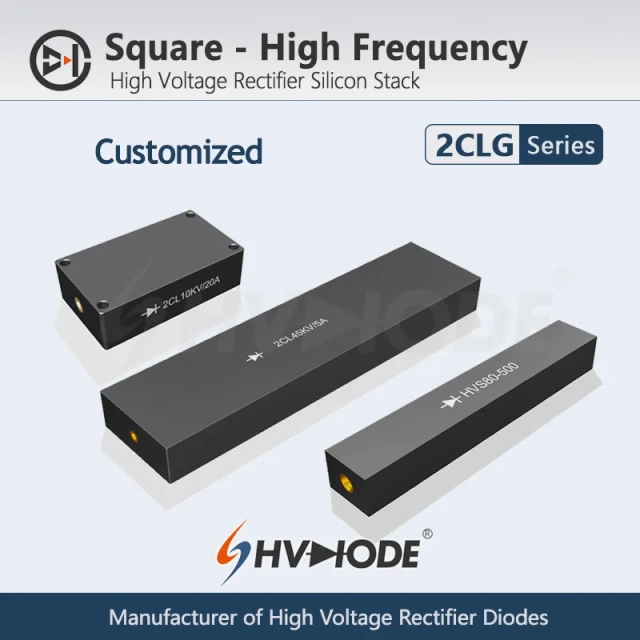

  2CL Series Square High Voltage Silicon Blocks Commonly Used Models

Type Vrrm(KV) If1(A) Vfm(V) Ifsm(A) TRR(nS) Irrm1/Irrm2(uA) Package Photo
  Ta=25℃ Ir=2uA Ta=25℃ Max  Tp=8.3mS  Ta=25℃/100℃
2CLG10KV-1A 10 1.0 12 35.0 100 2/20 HVS-902520
2CLG15KV-1A 15 1.0 18 35.0 100 2/20 HVS-902520
2CLG20KV-1A 20 1.0 24 35.0 100 2/20 HVS-1202520
2CLG25KV-1A 25 1.0 28 35.0 100 2/20 HVS-1202520
2CLG30KV-1A 30 1.0 36 35.0 100 2/20 HVS-1502520
2CLG35KV-1A 35 1.0 42 35.0 100 2/20 HVS-1502520
2CLG40KV-1A 40 1.0 48 35.0 100 2/20 HVS-1502520
2CLG45KV-1A 45 1.0 54 35.0 100 2/20 HVS-1502520
2CLG50KV-1A 50 1.0 60 35.0 100 2/20 HVS-1502520
2CLG60KV-1A 60 1.0 72 35.0 100 2/20 HVS-1803020
2CLG75KV-1A 75 1.0 90 35.0 100 2/20 HVS-2003020
2CLG80KV-1A 80 1.0 96 35.0 100 2/20 HVS-2003020
2CLG100KV-1A 100 1.0 120 35.0 100 5/50 HVS-2003020
2CLG120KV-1A 120 1.0 144 35.0 100 5/50 HVS-2003020
2CLG150KV-1A 150 1.0 180 35.0 100 5/50 HVS-2003020
2CLG180KV-1A 180 1.0 216 35.0 100 5/50 HVS-2003020
2CLG200KV-1A 200 1.0 240 35.0 100 5/50 HVS-2503020
2CLG220KV-1A 220 1.0 264 35.0 100 5/50 HVS-2503020
2CLG240KV-1A 240 1.0 288 35.0 100 5/50 HVS-2503020
2CLG300KV-1A 300 1.0 360 35.0 100 5/50 HVS-3003525
2CLG350KV-1A 350 1.0 420 35.0 100 5/50 HVS-3003525
2CLG400KV-1A 400 1.0 480 35.0 100 5/50 HVS-4003525
2CLG450KV-1A 450 1.0 540 35.0 100 5/50 HVS-4503525
2CLG500KV-1A 500 1.0 600 35.0 100 10/100 HVS-5005050
2CLG600KV-1A 600 1.0 720 35.0 100 10/100 HVS-6005050
2CLG800KV-1A 800 1.0 960 35.0 100 10/100 HVS-5006060
2CLG1000KV-1A 1000 1.0 1200 35.0 100 10/100 HVS-10008080

Junction Temperature(MAX) Temperature -55~+150℃; Storage Temperature -55~+125℃;
The models are not displayed individually, please contact customer service for specific requirements
Other models and parameters are not fully displayed, please contact our customer service: [email protected]
