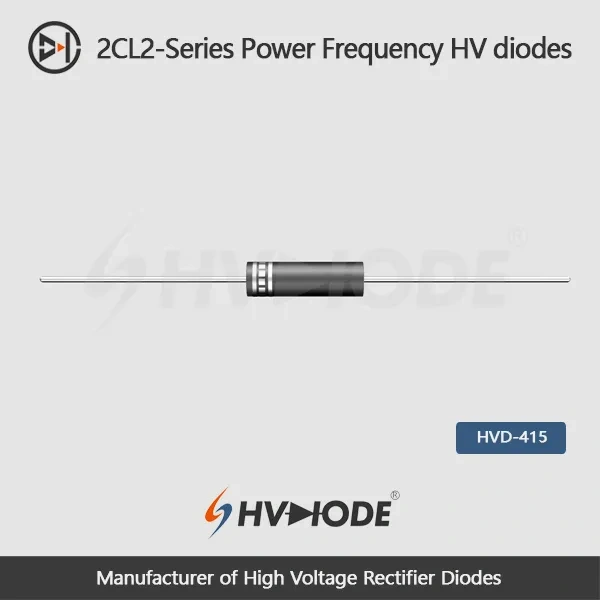

2CL2F-Series Axial Lead Fast Recovery High Voltage Diodes

Parameter optional range: (4~40KV; 100~250mA; 100nS)

Trr:

100nS

Vr(Type):

4KV(2CL2FD)-150mA

6KV(2CL2FE)-150mA

8KV(2CL2FF)

10KV(2CL2FG)

10KV(2CL2FK)-150mA

12KV(2CL2FH)

15KV(2CL2FJ)

15KV(2CL2FL)-150mA

20KV(2CL2FM)

25KV(2CL2FN)

30KV(2CL2FP)

35KV(2CL2FR)

40KV(2CL2FV)

GET A QUOTE

产品描述

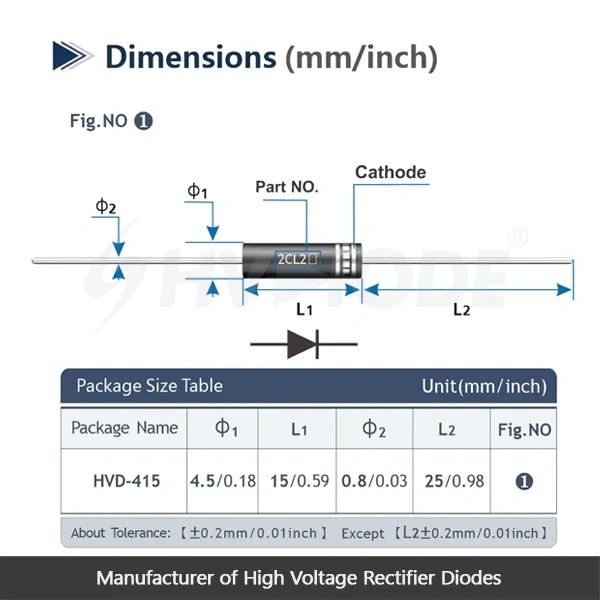

hvd-203封装
高压二极管两侧绝缘问题

HVDIODE's 2CL2F series axial lead fast recovery high voltage diode has an ultra-low power design, greatly improves the conversion efficiency of the rectifier circuit, and performs well in high temperature environments.
It provides a maximum capacity of 4~40KV 100~250mA and a fast recovery time of 100nS.
It is very suitable for compact high-performance applications.

Products Main features：

1、Axial leaded connection.
2、High thermal conductivity epoxy compound molding.
3、Low internal resistance reduces energy loss.
4、Special passivation glue chip protection
5、Excellent discharge characteristics.

Products Main Parameters
Parameter Optional Range：（4~40KV; 100~250mA; 100nS）

Type	Vrrm(KV)	If1(mA)	If2(mA)	Trr(nS)	Ifsm(A)	Vfm(V)	Irrm1/Irrm2(uA)
2CL2FD	4	150	250	100	20	10	2/20
2CL2FE	6	150	250	100	20	12	2/20
2CL2FF	8	100	200	100	10	16	2/20
2CL2FG	10	100	200	100	10	18	2/20
2CL2FH	12	100	200	100	10	20	2/20
2CL2FJ	15	100	200	100	10	24	2/20
2CL2FK	10	150	250	100	15	22	2/20
2CL2FL	15	150	250	100	15	26	2/20
2CL2FM	20	100	200	100	10	35	2/20
2CL2FN	25	100	200	100	10	40	2/20
2CL2FP	30	100	200	100	10	48	2/20
2CL2FR	35	100	200	100	10	55	2/20
2CL2FV	40	100	150	100	10	58	2/20
For other parameter requirements, please contact our customer service. [email protected]

Company Profile

Shuli Electronics was founded in 2008.
The core members of the team have many years of industry experience.
Shuli is a semiconductor ODM enterprise that integrates development, design, production and sales.
Our team is frank and sincere and keeps its promises.
We continue to surpass in self-reflection.
We strive to achieve common growth between customers and employees. Mutual benefit between partners and companies.
We use clear program planning and efficient program design to accurately meet customers' quality needs and price expectations.

Shuli always strictly follows the ISO9001 international quality management system certification, EU environmental protection system RoHs certification, and SGS global inspection and identification testing certification process. Achieve complete traceability of production process data. Connect to the ERP system and ultimately achieve refined and efficient operation of enterprise management.

Our main products include:
SMD high-voltage diodes, AED high-voltage diodes, ultra-fast recovery high-voltage diodes,
Silicon carbide high-voltage diodes, GPP high-temperature high-voltage diodes. NVD high-voltage diode row,
PCB high-voltage rectifier board, ceramic high-voltage rectifier board.
High-voltage silicon stack, high-voltage bridge rectifier, high-current high-voltage components, etc.

Shuli has invested a lot of money and accumulated technology in R&D, and has more than ten industry patents. With leading process technology and digital production management, it provides reusable high-voltage rectifier power devices to global customers. The core raw materials are all from well-known companies in the industry, and a stable and mature supply chain has been formed. To ensure the stability and reliability of our products.

High-voltage product structure design technology, high thermal conductivity design technology, multi-layer composite heat dissipation technology.

Multi-layer stacking technology, multi-layer chip cutting technology, high-efficiency optical inspection technology, high-temperature glass passivation technology, multi-layer protective glue passivation technology, high-temperature vacuum welding technology, high-temperature molding and packaging technology.

Multi-layer glass passivation superposition process, high-temperature stress relief technology, etc.

Make our products maintain industry-leading quality for a long time.

Our product features are:
Low leakage, high surge, high current impact resistance;
High reverse voltage, low forward, avalanche breakdown protection;
Fast response, high efficiency, super fast recovery time;
Moisture resistance, high insulation, in line with industry standards.

The products are widely used in aerospace, military weapons, radar, locomotives, nuclear irradiation, power grids, oil fields, industrial and agricultural production equipment, analysis, processing equipment, medical equipment, environmental protection engineering, photovoltaic energy storage, scientific research institutes, colleges and universities, national key laboratories and other electrical and electronic engineering fields.

FAQ

Who Are We?
We are HVDIODE, a specialist in manufacturing semiconductor high-voltage rectifier components since 2008, known for our advanced technology and dedication to innovation.

How Can We Guarantee Quality?
Quality is assured through our ISO9001 certification and adherence to strict manufacturing standards, ensuring top-notch products and consistent performance.

What Can You Buy from Us?
Our products include a range of high-quality semiconductor high-voltage rectifier components, designed for various high-voltage applications.

Why Should You Buy from Us, Not from Other Suppliers?
Our unique combination of advanced technology, commitment to R&D, long-term industry partnerships, and customer-focused service sets us apart in the market.

What Services Can We Provide?
We offer comprehensive services including product customization, technical support, and dedicated customer service, ensuring a seamless experience for our clients.

Explore now for innovative electronic solutions!

高压二极管的选择和使用环境关系密切

1.绝缘油中使用。（推荐）
2.绝缘气体中使用。（推荐）
3.二次封装使用。（对元器件的散热和其他参数性能要求高）
4.裸露空气中使用或加风冷。（如果高压二极管尺寸小，会容易放电，另外散热性能一般。）

裸露空气中使用的高压二极管，建议安装时，两端的电极，需要做绝缘保护处理。

常用表面附着绝缘胶的处理方式：

绝缘胶材质的特性：

1、Silicone材质固化后通常呈现透明且具弹性橡胶态，比较能有效防震，也可以承受较大高低温变化所产生的剧烈应力变化(-40°C~200°C)。

2、Acrylic材质固化后通常呈现透明而且坚硬的涂层，具有低吸湿性和较快的固化时间，耐磨及绝缘性佳。

3、Urethane材质固化后通常呈现透明且硬的涂层，具有优越的耐磨性和良好的防潮能力，在低温环境下的性能尤其稳定，但较不耐高温。

4、Epoxy为基质的涂层材料很坚固，通常为不透明状，具有良好的防潮及防湿能力，其防化学腐蚀和耐磨性的表现也非常好，另外Epoxy也具有良好的介电特性(dielectric properties)。

这里可以根据工程师的不同使用情况来选择合适材质的绝缘胶。
